PDF查询| 数据列表 | ADR420,421,423,425 高精度、低噪声、2.048 V/2.500 V/3.00 V/5.00 V XFET?基准电压源 |
|---|---|

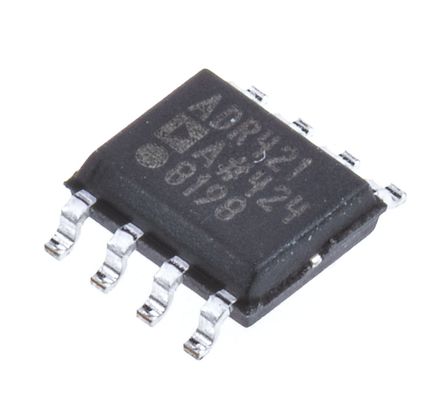

| 产品相片 | 8-SOIC |
| 设计资源 | 40 Channels of Programmable Voltage with Excellent Temperature Drift Performance Using AD5380 (CN0007) 40 Channels of Programmable Voltage with Excellent Temperature Drift Performance Using AD5381 (CN0010) 32 Channels of Programmable Voltage with Excellent Temperature Drift Performance Using AD5382 (CN0011) 32 Channels of Programmable Voltage with Excellent Temperature Drift Performance Using AD5383 (CN0014) 8 to 16 Channels of Programmable Voltage with Excellent Temperature Drift Performance Using AD5390/1/2 (CN0029) High Precision Digital-to-Analog Conversion Using the 16-Bit AD5542/1, ADR421, and AD8628 (CN0079) 16 Channels of Programmable Output Span Using AD5360 (CN0131) Layout Considerations for an Expandable Multichannel Simultaneous Sampling Data Acquisition System Based on AD7606 (CN0148) 40 Channels of Programmable Output Span Using AD5371 (CN0149) Software Calibrated, 1 MHz to 8 GHz, 70 dB RF Power Measurement System Using AD8318 (CN0150) How to Achieve High Precision Voltage Level Setting Using AD5541A/42A (CN0169) |
| 标准包装 | 98 |
| 类别 | 集成电路 (IC) |
| 家庭 | PMIC - 电压基准 |
| 系列 | XFET® |
| 包装 | 管件 |
| 参考类型 | 串联，精度 |
| 电压 - 输出 | 2.5V |
| 容差 | ±0.12% |
| 温度系数 | 10ppm/°C |
| 电压 - 输入 | 4.5 V ~ 18 V |
| 通道数 | 1 |
| 电流 - 阴极 | - |
| 电流 - 静态 | 500µA |
| 电流 - 输出 | 10mA |
| 工作温度 | -40°C ~ 125°C |
| 安装类型 | 表面贴装 |
| 封装/外壳 | 8-SOIC（0.154"，3.90mm 宽） |
| 供应商器件封装 | 8-SOIC N |
| 产品目录页面 | 796 (CN2011-ZH PDF) |
